DMP20

The discontinued models

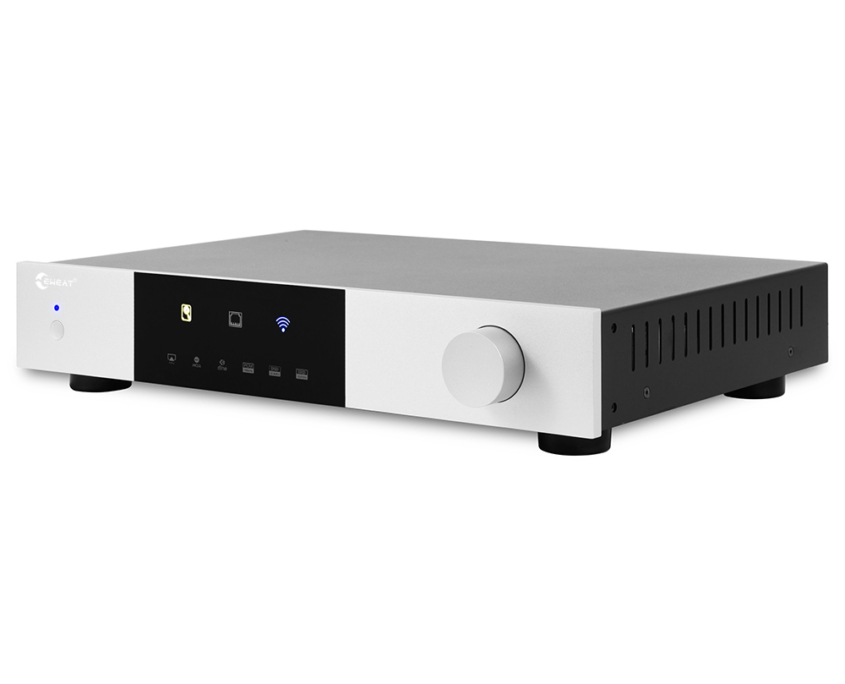

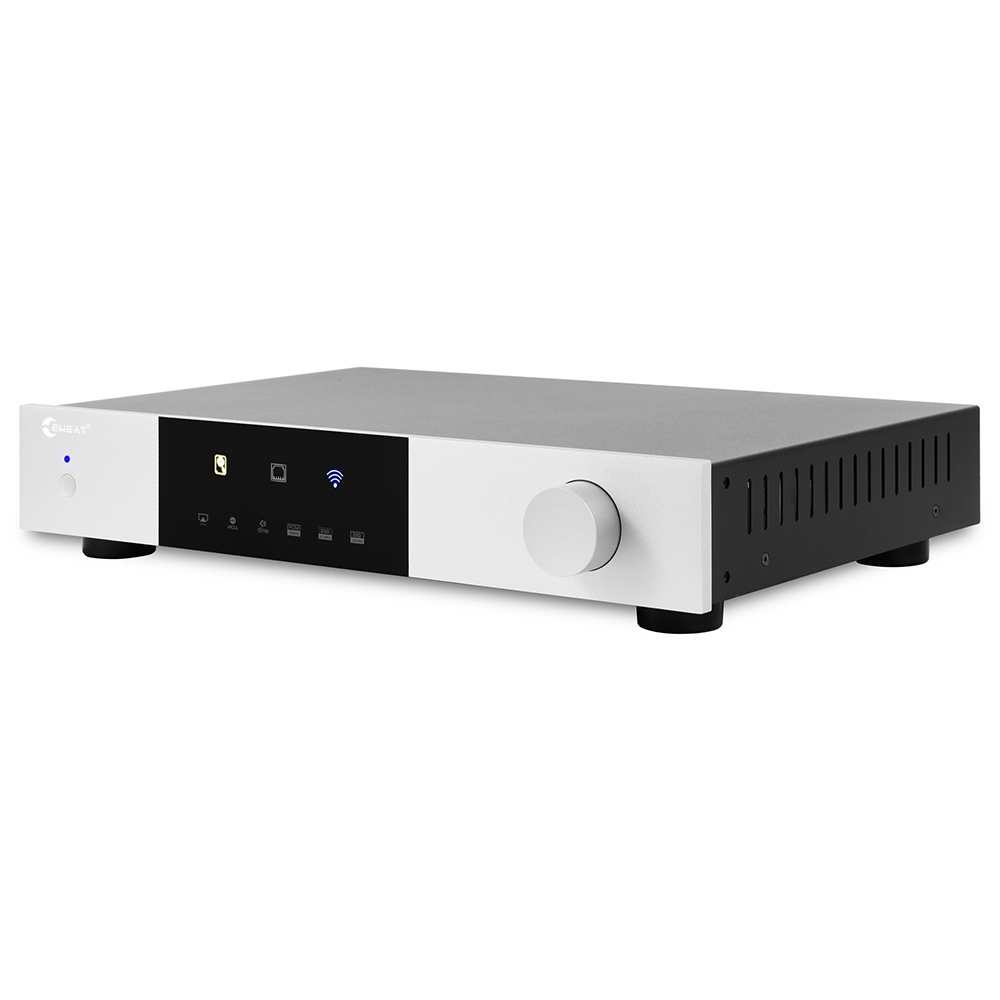

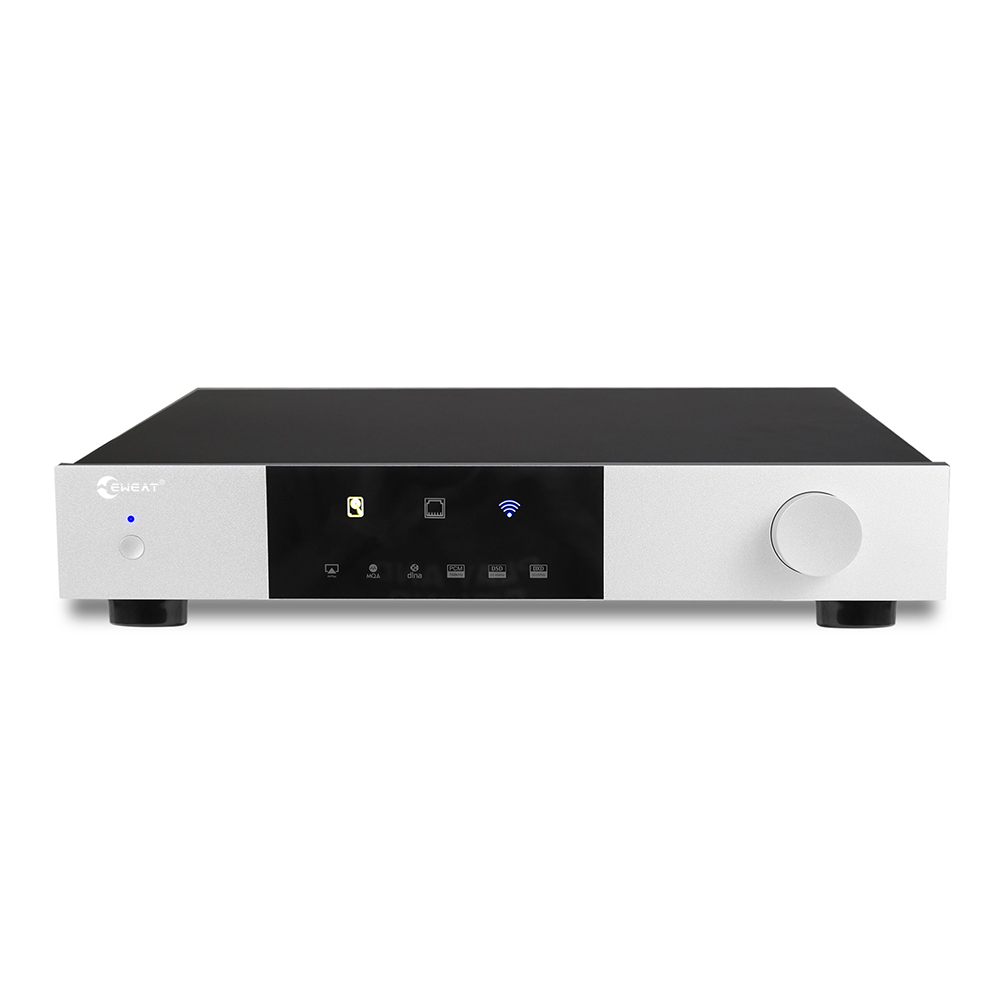

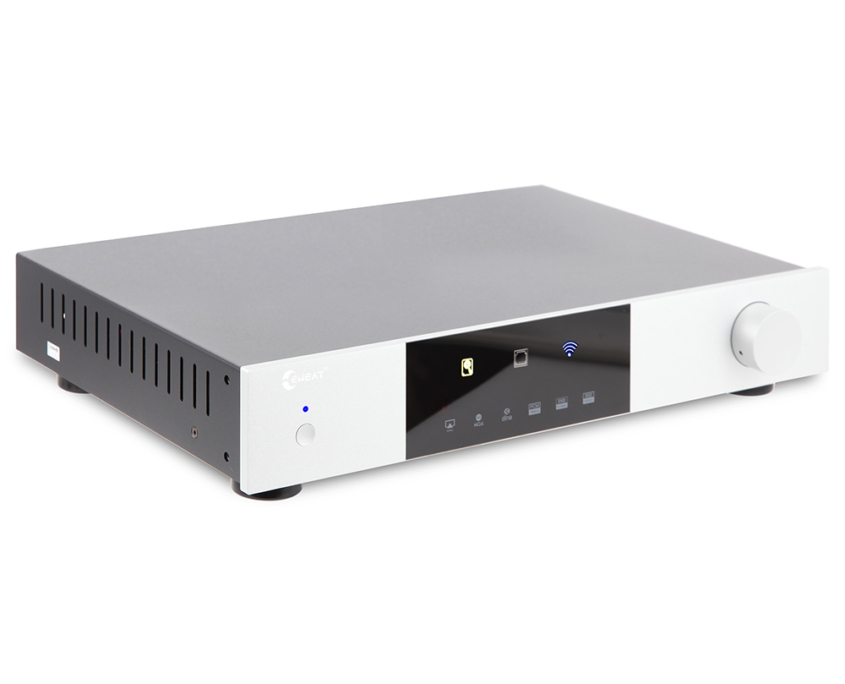

EWEAT DMP20: Your Gateway to High-Fidelity Audio

Discover the pure essence of digital music with the DMP20,

an entry-level digital music player designed to unlock stunning sound quality from your digital library.

Built for the aspiring audiophile, the DMP20 serves as the perfect first step into the world of high-resolution audio,

delivering exceptional performance that belies its accessible position.

The DMP20 is more than just a player; it’s an invitation to hear your music, your way, with unmatched fidelity.

Elevate your listening experience from ordinary to extraordinary.

Basic Parameters

Master Clock Jitter	Below measurable levels
Digital Sampling Rates (Fs)	44.1 kHz to 768 kHz
Digital Filter	32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters	2 – 2 channel ESS9038Q2M for working on true balanced output
BLUETOOTH	Bluetooth V4.2with aptX® HD for 24 Bit / 48 kHz high definition audio decoder
Analog Filter	3rd Order Bessel

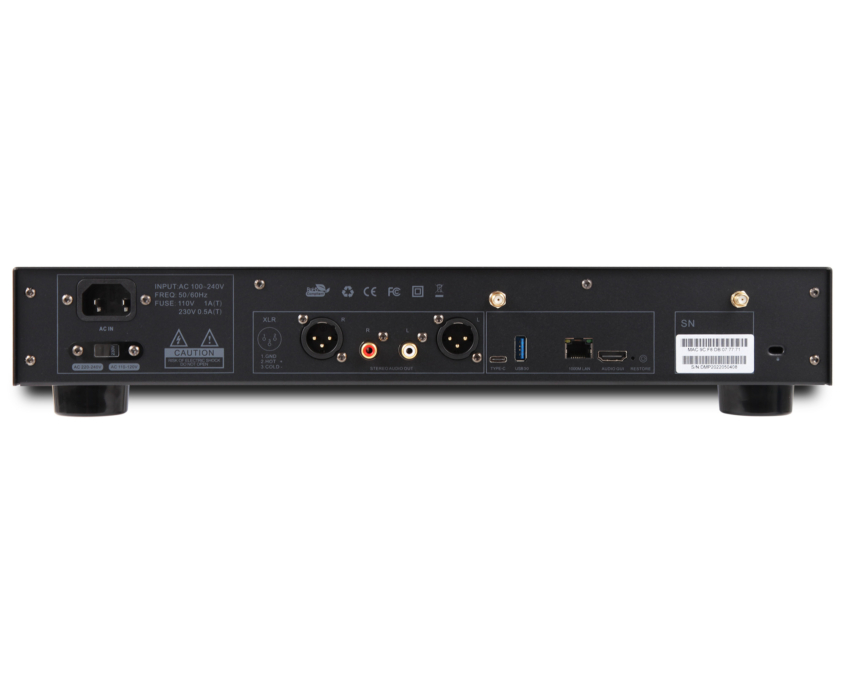

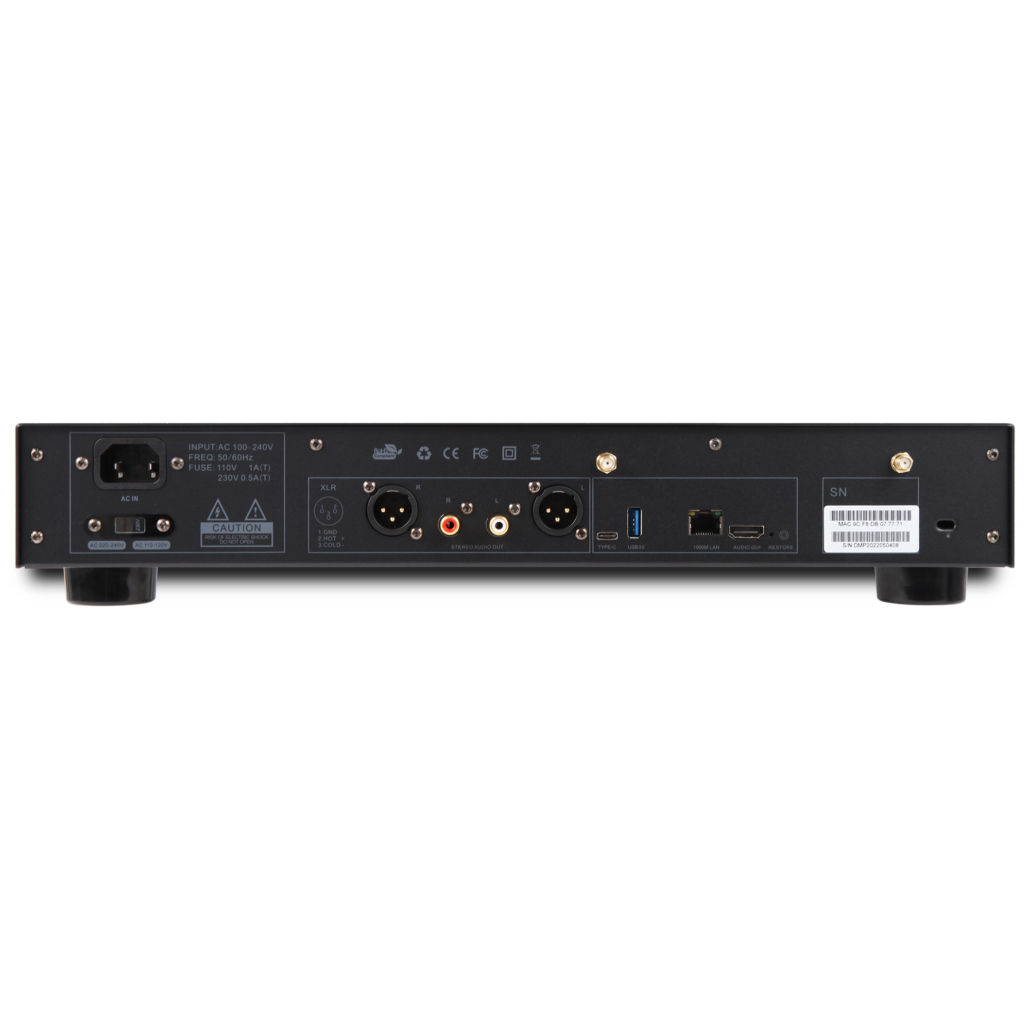

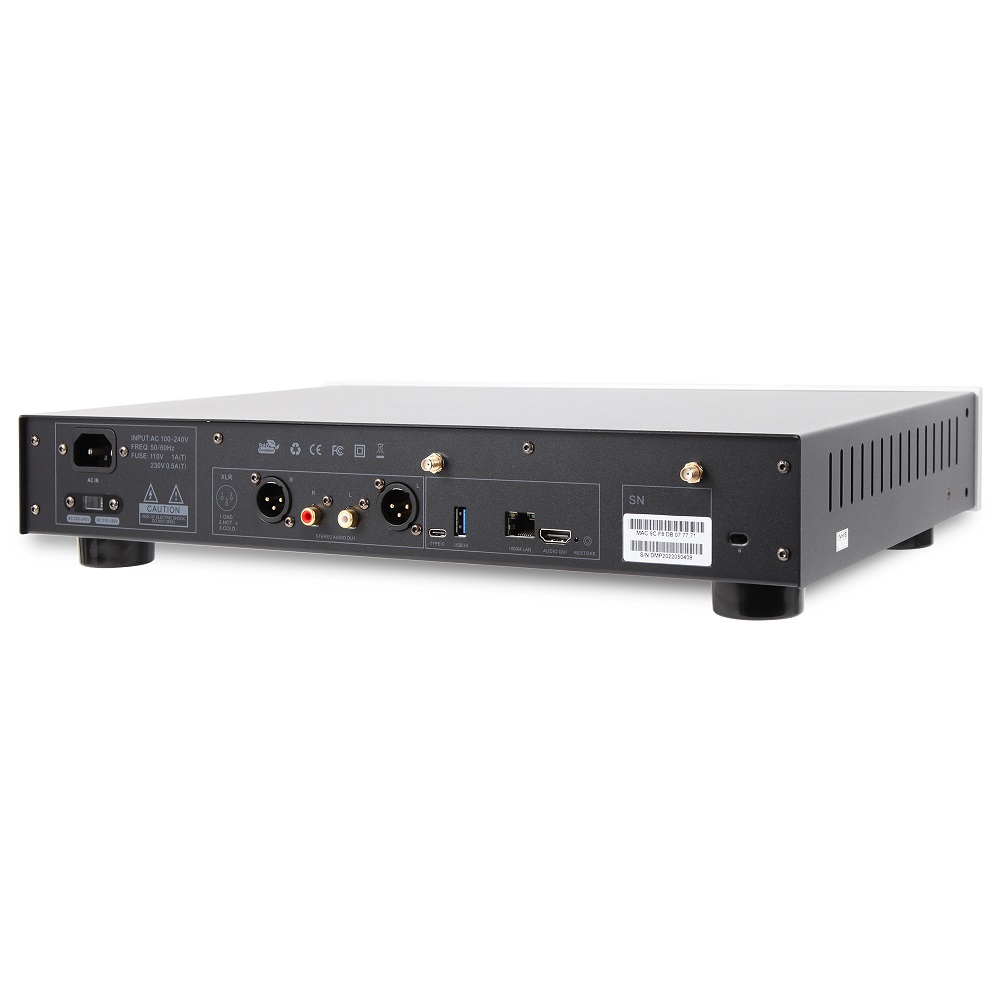

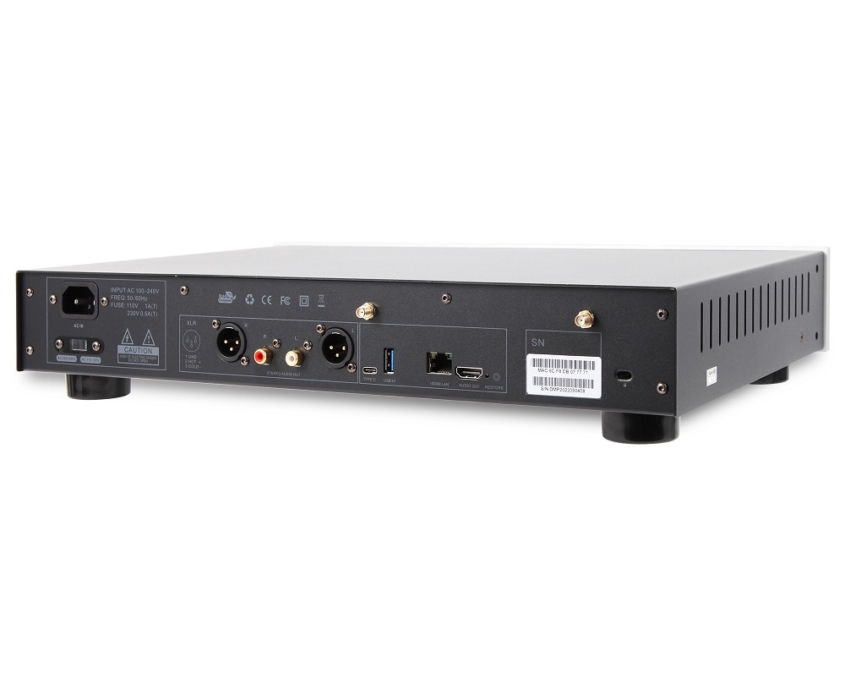

Analog Outputs	Balanced XLR, Non-Balanced RCA
Analog Outputs	IR control x1
Communication	Ethernet RJ45 full remote configuration interface
Communication	802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI
Hard Disk Drive	Hard Disk Drive bays x1,up to 16T
Other connectors	USB3.0 x1,TYPE-C x1
Power Input	Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
AC Power Requirements	78 Watts

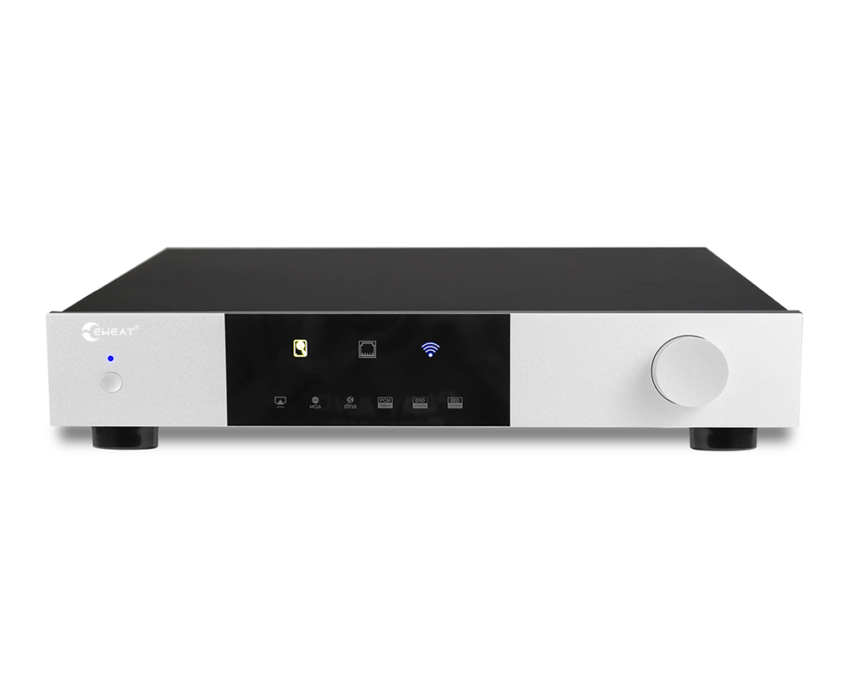

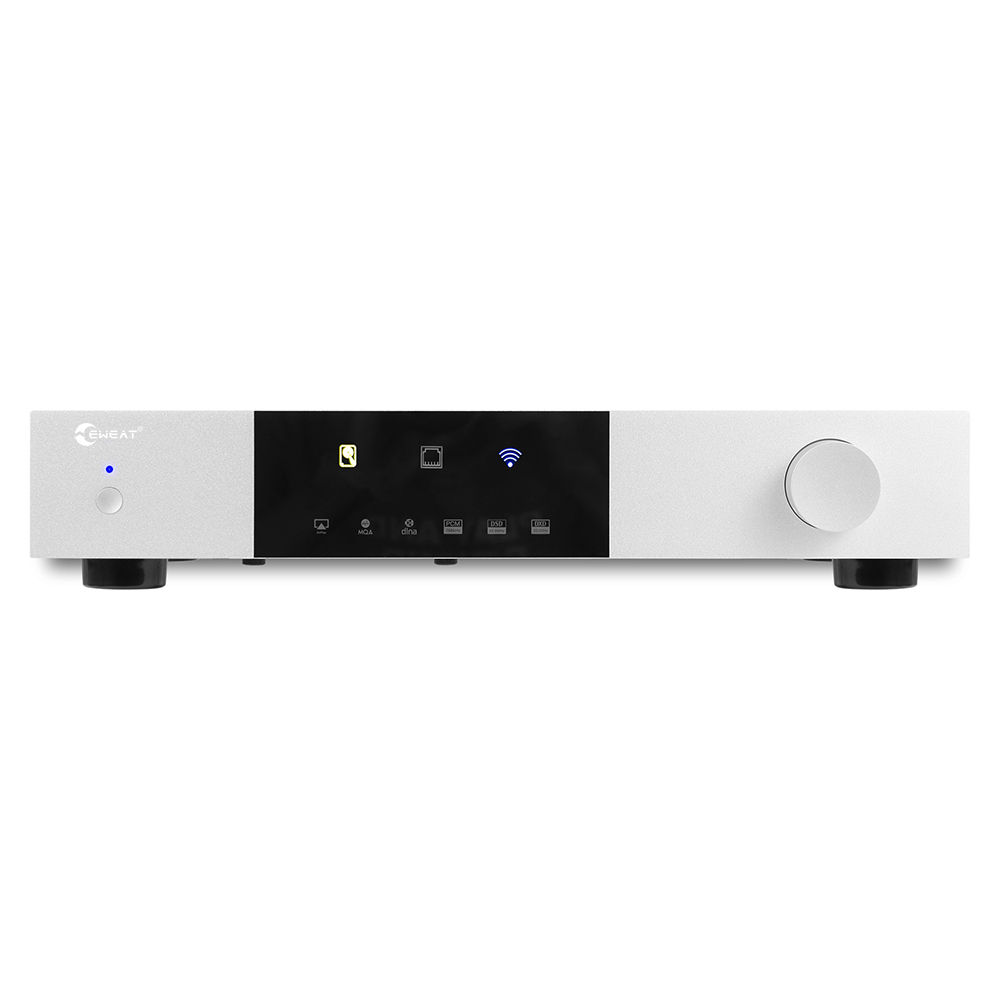

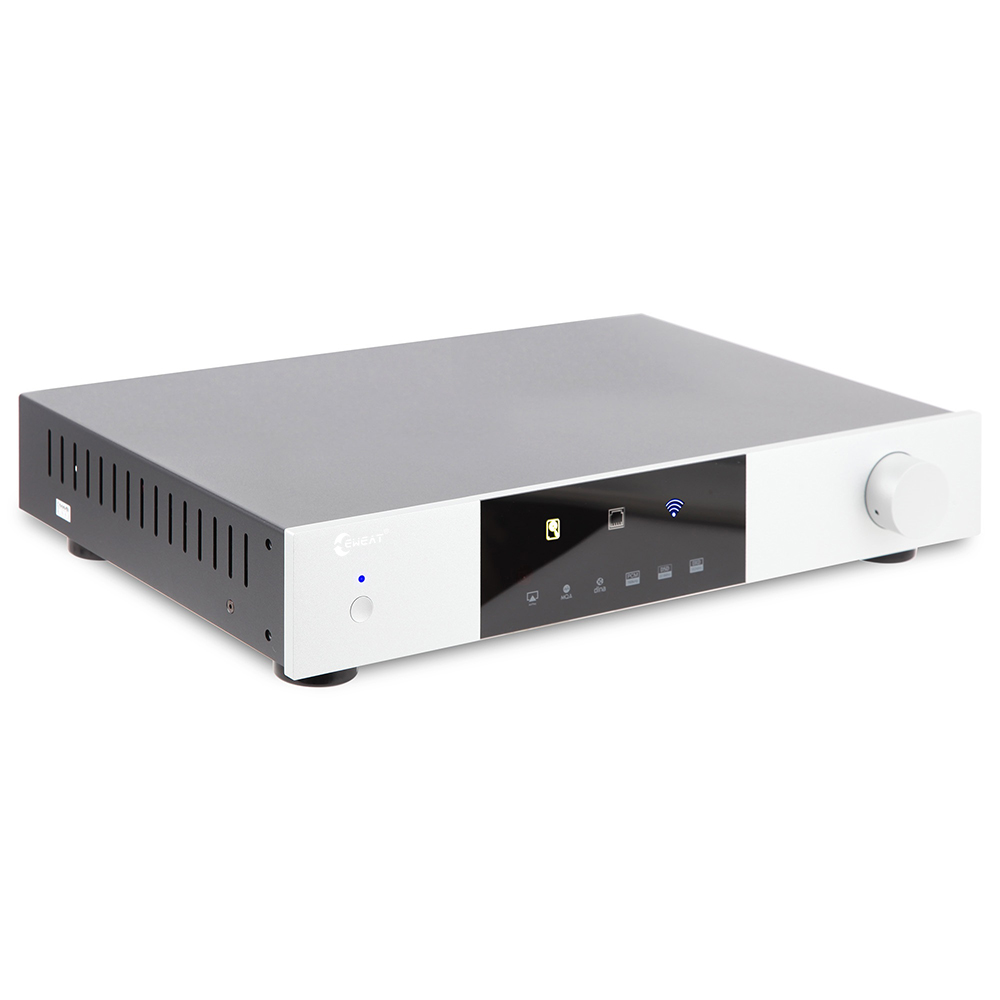

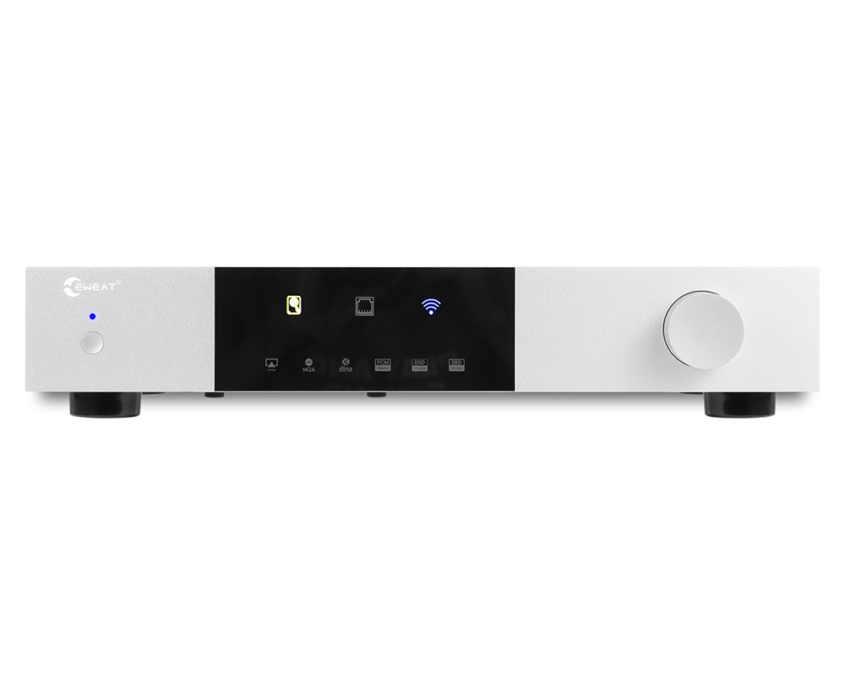

Case	Black case with silver aluminum faceplate
Weight	6.5KG
Dimensions	(L)426(W)300(H)79 mm

Audio (LPCM)

Frequency Range	2 Hz – 22 kHz (44.1 kHz)
Amplitude Linearity	0.1 dB (20 Hz – 20 kHz)
Phase Linearity	3 degrees (20 Hz – 20 kHz)
Dynamic Range	125 dB (1 kHz)
Signal-to-Noise Ratio	113 dB (1 kHz)
Channel Separation	107 dB (1 kHz)
Total Harmonic Distortion	0.0004% (1 kHz)
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Level	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
Playback Format Supply	.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf
Frequency Range	2 Hz – 125 kHz
Signal System	16, 20, 24, & 32 bit PCM and 1 bit DSD
Sampling Frequency	44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD
Dynamic Range	125 dB
DSD System Clock	Frequency 22.5792 MHz
Signal-to-Noise Ratio	112 dB
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Level	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

Spdif Playback

Frequency Range	2 Hz – 100 kHz
Signal System	16, 20, and 24 bit
Sampling Frequency	44.1 kHz to 192 kHz PCM
Dynamic Range	123 dB
System Clock	Frequency 22.5792 MH
Signal-to-Noise Ratio	112 dB
Audio Output Levelb	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
Audio Output Levelb	3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
Balanced XLR Output	+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
